3axle 46000liter Aluminum Alloy Fuel Tanker Semi-trailer

FOB Reference Price:Get Latest Price
US $30,000-80,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
2000 Set/Sets per Year
Port:
WUHAN, SHANGHAI, CHINA ANY PORT
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Storage:
Oil
Horsepower:
351 - 450hp
Transmission Type:
Manual
Fuel Type:
Diesel
Tank Volume:
> 30000L
Dimensions (L x W x H) (mm):
11900MMx2500MMx3900MM
Brand Name:
QIXING
Place of Origin:
Hubei, China (Mainland)
Model Number:
QXFT016
Gross Vehicle Weight:
40000
Certification:
DOT,SANO,CE,ASME,ISO9001, CCC, ISO/TS16949, SGS
Material:
Aluminum alloy
Axle Brand:
BPW
Suspension System:
Air Suspension
ABS Anti-lock Braking System:
Equipped
Volume:
46000L
Differential Gear Type:
Anti-slip Type
Universal Joint Type:
Flexible Universal Joint
Export Markets:
Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia
Packaging & Delivery
Packaging Details
per requirement
Delivery Time
30 days after order confirm

Aluminum Alloy 3 axle 46CBM Fuel tanker semi-trailer



Main Dimensions

Overall Length:       12300mm

Overall Width:         2500mm

Overall Height:       3820mm

GVW:                      40000KG

Curb Weight:          7000KG

Loading Weight:     33000KG

Loading Capacity:  46CBM

Tanker Size:           11740mm*2500mm*2015mm



Tank Body

Shape:  Mono block cylinder

Total Volume( m3):   46CBM

Tanker Body Material:  Aluminum Alloy 5083

End plate:  Aluminum Alloy 5083

Lifting ladder:    Including Top walkway and backside Aluminum material

Manhole cover:   Aluminum alloy API manhole cover with oil and gas recovery system

Bottom Valve:   1set

Discharging valve :  1set

Discharging Pipe:   4" rubber hose, 2pc, 6m long



3axle 46000liter Trailer

General Information
NameUnitSpecification model
Loading medium Gasoline
Volumem346
External dimension(LxWxH)mm12300*2500*3750
Curb weightkg7000
King Pin Heightmm/
Front/Rear overhangmm1650/1440
Wheelbasemm6500+1350+1350
Wheel distancemm2040
Landing gear location(from the king pin)mm2420
Saddle/ Fifth wheel height(Unload)mm/
Vehicle Weight(KG)
Vehicle maximum payloadkg40000
Vehicle curb weightkg7000
Vehicle design loading weightkg33000
Vehicle maximum allowable payloadkg31234
Unit volume payloadt/m30.679
Fifth wheel rated load weightkg30000
Fifth wheel full load weightkg16000
Maximum axle payloadkg24000
Tank Body
NameUnitSpecfication model
Volumem346
Compartmentspcs3
comparment volumem312.98+12.98+20.04
Shape Ellipses
MaterialTank5083 H11 t=6mm
Dish ends5083 0     t=7.2mm
Bulkhead&Wash Board5083 0     t=7.2mm
Running gear
NameBrandSpecification model
Landing gearJOSTA400
King pinJOSTKZ1412 90# King pin
axleBPWHSM12010-16ECO
suspensionBPWHSMSLM12010ECO 3 axles single tire, air suspension
tireBridgestone425/65R-22.5
rimAlcoa13.00-22.5
ABS assyWABCO4S-2M 24V 400 500 088
Tank accessories and fittings
Manhole1. Three manholes with 16” OPW DN400 manhole cover, each comparment for one manhole;
2. Built-in thread type breather valve in the manhole;
3. Equipped with auxiliary three openings: for mounting vapor recovery vavle, anti overflow probe, dip hatch and so on.
Discharge system1. Bottom vavle: Three DN100(4") OPW EUR0100-1S pneumatic bottom valve on the bottom of the tanker, each comparment for one foot vavle;
2. Discharge pipe line: Three DN100(4") aluminum alloy pipe line extended to the middle right side of tank operation box from each bottom valve.
3. All outlets are in the aluminum alloy operation box.
4. Discharge vavle: Three DN100(4") OPW 891BA-NP, connected with the aluminum alloy discharge pipe line flange in the operation box, to be fitted at a height of between 700mm and 850mm above the ground; Every discharge vavle equipped with one 8-plane rotary oil indicator;
5. Discharge hose: NBR
Vapor recovery system:1. Three DN80(3'') vapor recovery nozzle on the left shoulder of top tank, corresponding to the location of manhole, connected the vapor recovery vavle of the manhole with hose;
2. One DN100(4'') aluminum alloy non-welding pipe along with tank extended to the middle right side of tank operation box from left shoulder;
3. One OPW T196SV vapor recovery valve; one OPW 633LVB vapor recovery quick joint(equipped with OPW 1711T plug)
4. One OPW T180SV vapor recovery valve by-pass on left shoulder of top tank.
Axle and suspensionBPW 12000KG drum brake axle and air suspension, three axles, front axle with lifting function.
Braking system1. Braking hose: TIEMA 3/8”; 2. Brake chamber: China dongxing brand, 4pcs T3030EB3 and 2pcs T30EB1.                                                                                                   3. Air storage tank: China brand.                                                             4. ABS: WABCO, 4S-2M 24V 400 500 088
PaintingColorless transparent varnish on the surface
Light system1. Harness: vapor anti-explosion overall harness;
2. Side marker lamps: amber color, 5pcs for each side;
3. Clearance lamps:front clearance lamp 2pcs, rear clearance lamp 2pcs;
4. Front position lamp 2pcs; rear position lamp 2pcs.
5. Tail lamp: braking lamp, reversing lamp, rear turn signal lamp, each kind lamp 2pcs, red/ amber color;
6. Warning triangle: 2pcs;
7. Rear-registration-plate lamp: 1pcs
API valve and joint1. API reducer union 3pcs: OPW 876-AL1030;
2. API joint dust cap 3pcs: OPW 875C;
3. API discharge valve 3pcs: OPW 891BA-NP.
Accessories1. Ladder: a detachable ladder is equipped in the rear of the tanker; made of aluminum alloy;
2. Handrail: aluminum alloy fixed on the top tank , it can be used to rise and down,and controlled by cylinder.
3. Fire extinguisher:2pcs,8kg for each one;
4. Fire extinguisher box: two boxes are fixed on the left and right side of the trailer, made of plastic.
5. Fender;
6. Spare tire carrier: 1pcs, equipped on the left side of frame, made of steel;
7. Tool Box: 1pcs, made of aluminum alloy;
8. Side of the fence: can be used to rise and down,made of aluminum alloy;
9. Drain-pipe: 2pcs, PVC, equipped on the rear of tank.







Product Sample

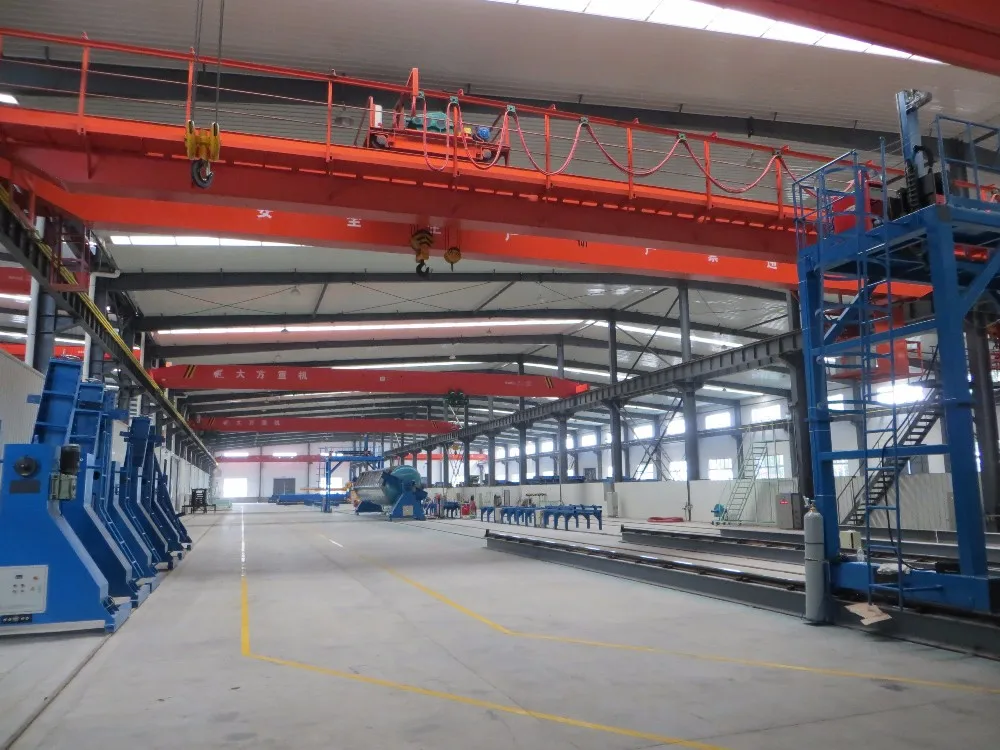

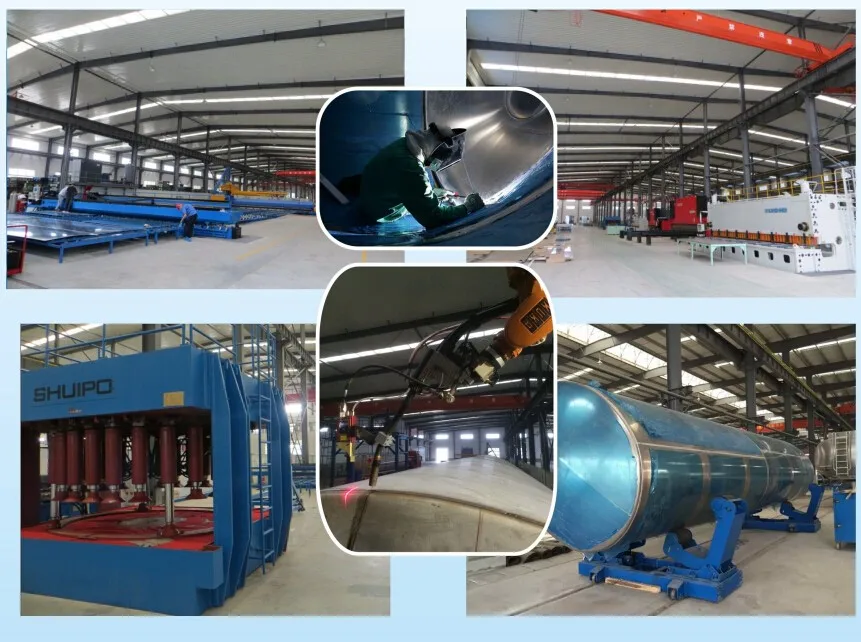

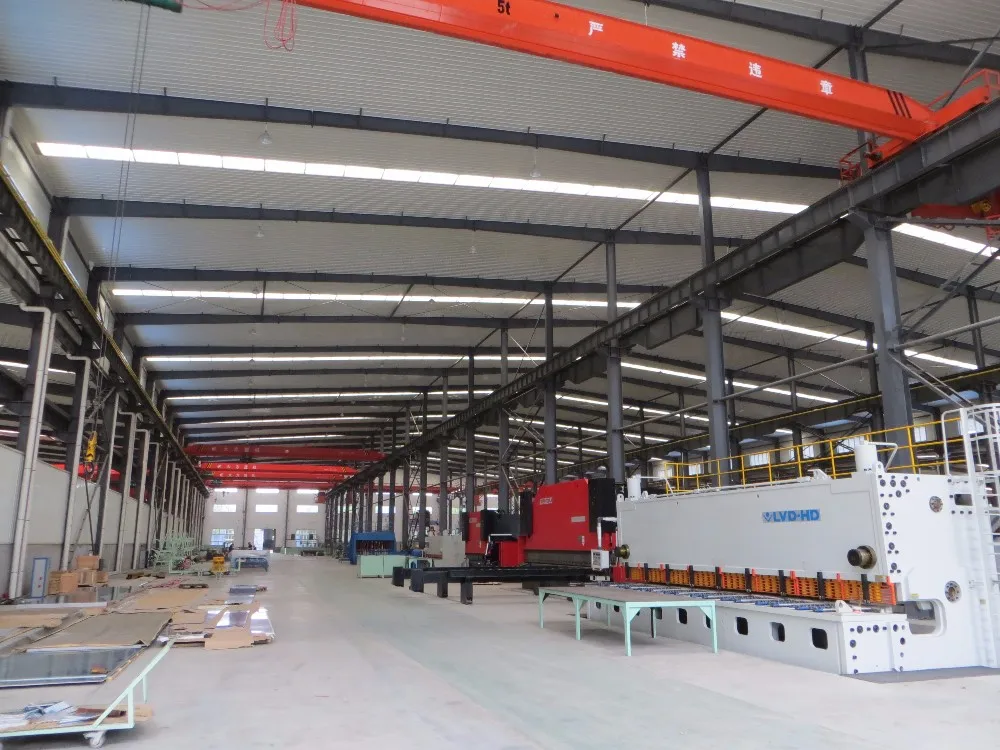

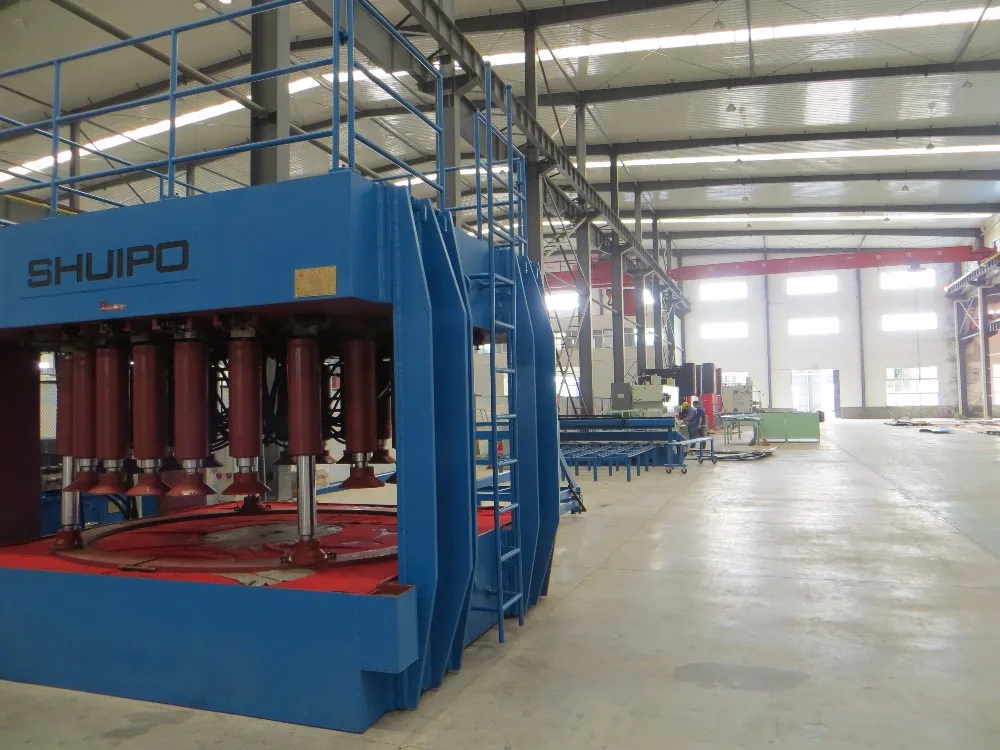

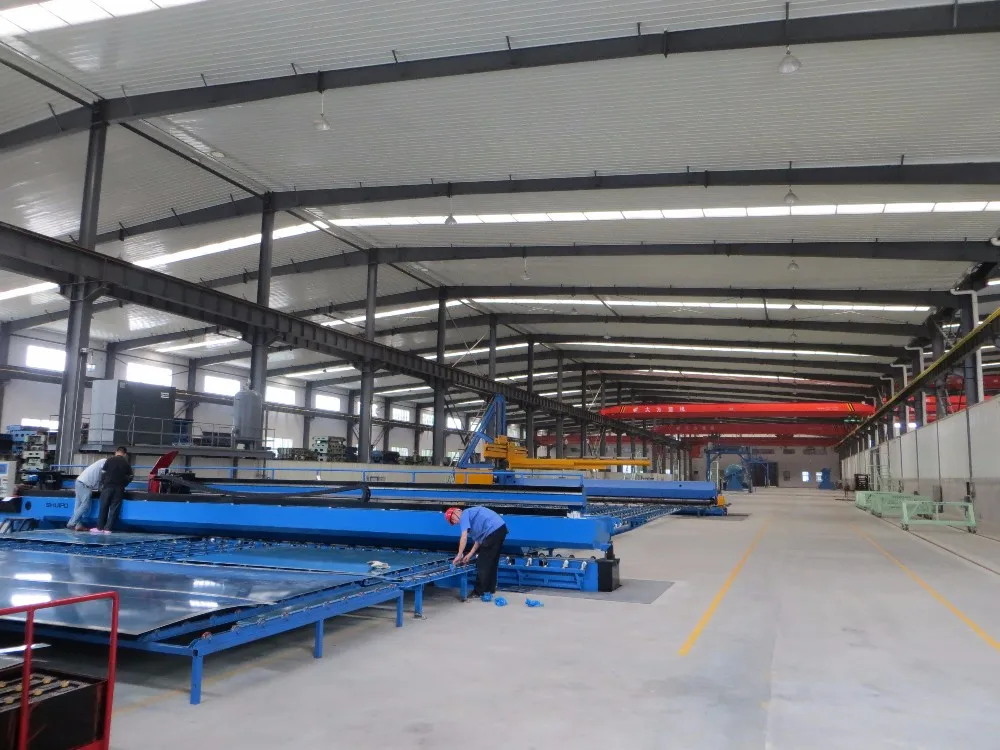

Production Machinery

Welcome to our factory !
